Surface Cable

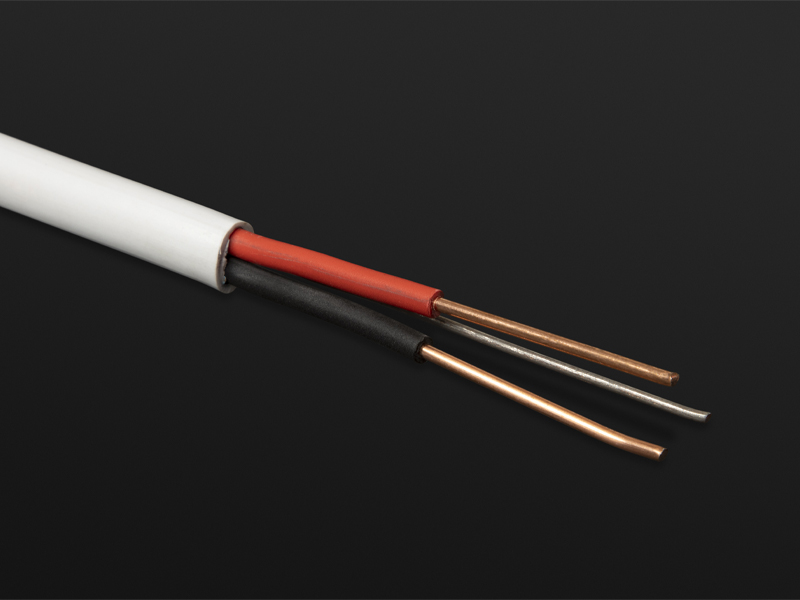

Surface cable is used for fixed installation internally and externally in houses, offices and buildings for wiring in roofs, floors and under plaster. It is constructed with high conductivity solid or stranded annealed copper conductors and insulated with general purpose grade PVC. The cable also consists of a laminated aluminium tape below the outer sheath that provides extra durability.
SPECIFICATION
SANS 1507-2
Voltage Rating: 300/500V
Operating Temperature: -10°C to 70°C
Flexibility Class: 1 & 2
Conductor Type: Cable Grade Annealed Copper
Packaging: 50m, 100m, 500m, 1000m (Subject to the specified cable type and size)
Insulation: General Grade PVC
Core Colours: 2 Core – Red, Black
3 Core – Red, Yellow, Blue
4 Core – Red, Yellow, Blue, Black
Outer Sheath: General Grade PVC
Outer Sheath Colour: Black, White
| Product Code | Conductor Size (mm²) | Cable Diameter (mm) | Resistance dc Ω/km (max) | Approximate Cable Weight kg/km | Current Rating (Amps) | |
|---|---|---|---|---|---|---|
|
|
|
|
Phase Ω/km (max) |
Earth Ω/km (max) |
|
|
|
SUR0015002PVC09D00AN |
1.50 |
7.47 |
12.10 |
18.20 |
0.095 |
17 |
|
SUR0015003PVC09D00AN |
1.50 |
7.49 |
12.10 |
18,20 |
0.111 |
15 |
|
SUR0015004PVC09D00AN |
1.50 |
8.63 |
12.10 |
18.20 |
0.135 |
15 |
|
SUR0025002PVC09D00AN |
2.50 |
8.67 |
7.41 |
12.20 |
0.132 |
23 |
|
SUR0025003PVC09D00AN |
2.50 |
8.69 |
7.41 |
12.20 |
0.160 |
20 |
|
SUR0025004PVC09D00AN |
2.50 |
10.08 |
7.41 |
12.20 |
0.196 |
20 |
|
SUR0040002PVC09D00AN |
4.00 |
10.35 |
4.61 |
12.20 |
0.184 |
30 |
|
SUR0040003PVC09D00AN |
4.00 |
10.37 |
4.61 |
12.20 |
0.228 |
27 |
|
SUR0040004PVC09D00AN |
4.00 |
12.11 |
4.61 |
12.20 |
0.289 |
27 |
|
SUR0060002PVC09D00AN |
6.00 |
11.43 |
3.08 |
7.56 |
0.255 |
38 |
|
SUR0060003PVC09D00AN |
6.00 |
11.67 |
3.08 |
7.56 |
0.315 |
34 |
|
SUR0060004PVC09D00AN |
6.00 |
13.41 |
3.08 |
7.56 |
0.388 |
34 |
|
SUR0100002PVC09D00AN |
10.0 |
13.69 |
1.83 |
4.70 |
0.399 |
52 |
|
SUR0100003PVC09D00AN |
10.0 |
15.57 |
1.83 |
4.70 |
0.540 |
48 |
|
SUR0100004PVC09D00AN |
10.0 |
16.54 |
1.83 |
4.70 |
0.627 |
48 |
*COLOUR CODE
#PACKAGING SIZE
• Table and graphics for indication purposes only, Cable performance may vary depending on installation conditions.
• Weights may vary.
Resistance is measured at 20°C.
SPECIFICATION
SANS 1507-2
Voltage Rating: 300/500V
Operating Temperature: -10°C to 70°C
Flexibility Class: 1 & 2
Conductor Type: Cable Grade Annealed Copper
Packaging: 50m, 100m, 500m, 1000m(Subject to the specified cable type and size)
Insulation: General Grade PVC
Core Colours: 2 Core – Red, Black
3 Core – Red, Yellow, Blue
4 Core – Red, Yellow, Blue, Black and Tin Copper Earth
Outer Sheath: General Grade PVC
Outer Sheath Colour: Black, White
| Product Code | Conductor Size (mm²) | Cable Diameter (mm) | Resistance dc Ω/km (max) | Approximate Cable Weight kg/km | Current Rating Amps | |
|---|---|---|---|---|---|---|
|
|
|
Phase Ω/km (max) |
Earth Ω/km (max) |
|
|
|
|
SUR0015002PVC09D00AN |
1.50 |
7.74 |
12.10 |
18.20 |
0.095 |
17 |
|
SUR0015003PVC09D00AN |
1.50 |
7.49 |
12.10 |
18.20 |
0.111 |
15 |
|
SUR0015004PVC09D00AN |
1.50 |
8.63 |
12.10 |
18.20 |
0.135 |
15 |
|
SUR0025002PVC09D00AN |
2.50 |
8.67 |
7.41 |
12.20 |
0.132 |
23 |
|
SUR0025003PVC09D00AN |
2.50 |
8.69 |
7.41 |
12.20 |
0.160 |
20 |
|
SUR0025004PVC09D00AN |
2.50 |
10.08 |
7.41 |
12.20 |
0.196 |
20 |
|
SUR0040002PVC09D00AN |
4.00 |
10.35 |
4.61 |
12.20 |
0.184 |
30 |
|
SUR0040003PVC09D00AN |
4.00 |
10.37 |
4.61 |
12.20 |
0.228 |
27 |
|
SUR0040004PVC09D00AN |
4.00 |
12.11 |
4.61 |
12.20 |
0.289 |
27 |
|
SUR0060003PVC09D00AN |
6.00 |
11.67 |
3.08 |
7.56 |
0.315 |
34 |
|
SUR0100002PVC09D00AN |
10.0 |
13.69 |
1.83 |
4.70 |
0.399 |
52 |
|
SUR0100003PVC09D00AN |
10.0 |
15.57 |
1.83 |
4.70 |
0.540 |
48 |
|
SUR0100004PVC09D00AN |
10.0 |
16.54 |
1.83 |
4.70 |
0.627 |
48 |
*COLOUR CODE
#PACKAGING SIZE
• Table and graphics for indication purposes only, Cable performance may vary depending on installation conditions.
• Weights may vary.
• Resistance is measured at 20°C.
